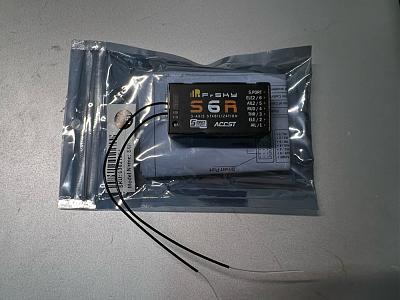

    FRSKY S6R receiver with 3 axis Stabilization

    Brand new in packet. Contact 90701463 if keen.

    Features:
    • Built-in 3 axis gyro
    • Built-in 3 axis accelerometer sensor module
    • Built-in RSSI PWM output (0~3.3V)
    • Built-in battery voltage sensor
    • Smart port enabled
    • Fail safe
    • Small and lightweight (only 12.1g)
    • Wide voltage range (4~10V)
    • Firmware upgradeable

    Specs:
    Model Name: S6R
    No of Channels: 6
    With RSSI Output Onboard: PWM voltage output (0~3.3V), 100HZ, 1500500uS
    Operating Voltage: 4~10V
    Operating Current: 100mA@5V
    Operating Range: Full range
    Gyroscope Measurement Range: 2000dps
    Accelerometer Measurement Range: 4g
    Dimensions: 47.4 x 23.8 x 14.7mm
    Weight: 12.1g
