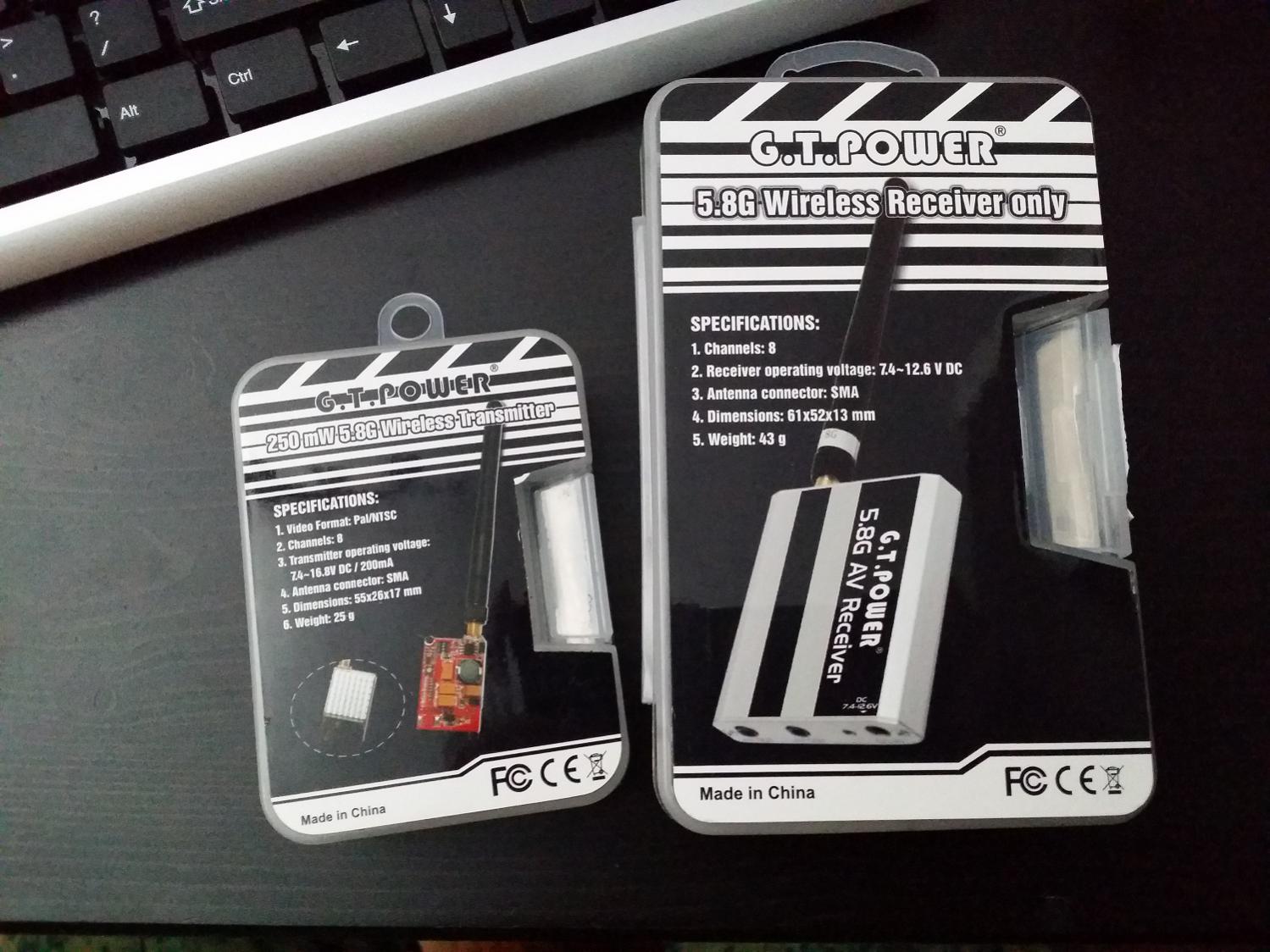

WTS BNIB - GT Power 5.8 FPV TX RX

Call for price 96914941

[nightmare8118]

Transmitter parameters:
Video layout: Pal / NTSC
Video input level: 0.8-1.2 Vp-p
Output Resistance: 50 Ohm
Video input resistance: 75 Ohm
Output Power: 21-23 dBm
Audio input level: 0.5-2.0 Vp-p
Channel: 8
Audio output resistance: 10K/Ohm
Transmitter operating voltage: 7.4-12.6 V DC/200mA
Weight: 25 g
Band width: 0-8.0 MHz
Antenna connector: SMA
Video frequency: 6.5 MHz
Size: 55x26x17 mm

Receiver parameters:
Channel: 8
Operating temperature: -10-85 ℃
Band width: 0-8.0 MHZ
Audio Frequency: 6.5 MHZ
Video input level: 0.8-1.2 Vp-p
Video input resistance: 75 Ohm
Audio input level: 0.5-2.0 Vp-p
Audio input resistance: 10K/Ohm
Weight: 43 g
Antenna connector: SMA
Size: 61x52x13 mm

[nightmare8118]

reserve

[nightmare8118]

Sold
