Just in The JGF 500 Series:

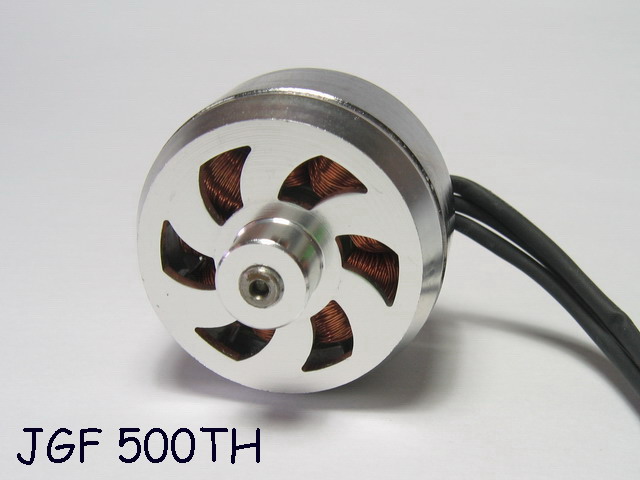

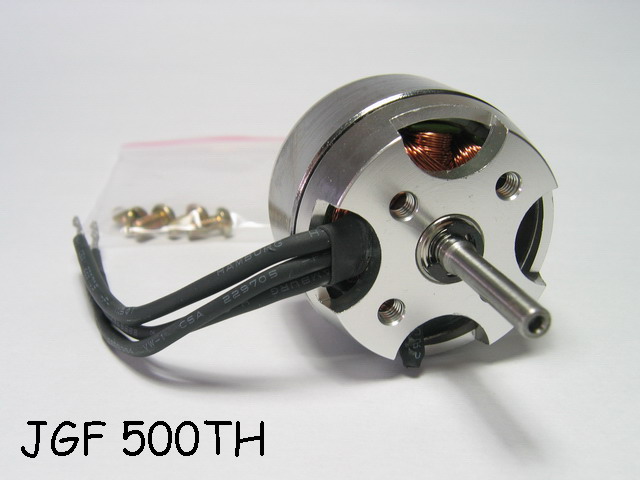

JGF 500TH
57 grams
32.6 mm diameter
Kv: 3381
IO: 2.4 amps @10v
RM: .0172
36 amp max
400 Watts
Helis: 14T Pinion
Jets: 4.7x4.2
4.75x4.75 Prop
Reviews:
For 3D pilots, you ll feel the different when you flip with your JGF 500th. "Bogging effect" is greatly reduced with the extra punch which the 500 series have promised to deliver. Make sure you have a good battery. The 500TH is a power house and capable of handling a lot, for extreme pilots running at 3000 RPM you will need to feed it with batteries up to the task. 3000 RPM 3S on a 13T is expected. We recommend an 11T for a normal flyer on a 500TH.
Details here :
JGF 500SH
62 grams
32.6 mm diameter
Kv: 2931
IO: 1.79 amps @10v
RM: .0247
25+ amp max
300+ Watts
Helis: 14,15T Pinion
Jets: 5x5 Prop
Reviews:
Efficiency matters. 500SH pushes the limits to an impressive 3200 RPM on 4S with a 12T pinion at 425 watts, or fly it 3S on 15T for 2950 RPM on 335mm blades. Most flyers will want less RPM than this and I recommend a 13T for the 500SH. On top of that, most 3D pilots would opted for a 325mm blades.
Details here :
JGF 500TH
57 grams
32.6 mm diameter
Kv: 3381
IO: 2.4 amps @10v
RM: .0172
36 amp max
400 Watts
Helis: 14T Pinion
Jets: 4.7x4.2
4.75x4.75 Prop
Reviews:
For 3D pilots, you ll feel the different when you flip with your JGF 500th. "Bogging effect" is greatly reduced with the extra punch which the 500 series have promised to deliver. Make sure you have a good battery. The 500TH is a power house and capable of handling a lot, for extreme pilots running at 3000 RPM you will need to feed it with batteries up to the task. 3000 RPM 3S on a 13T is expected. We recommend an 11T for a normal flyer on a 500TH.
Details here :
JGF 500SH
62 grams
32.6 mm diameter
Kv: 2931
IO: 1.79 amps @10v
RM: .0247
25+ amp max
300+ Watts
Helis: 14,15T Pinion
Jets: 5x5 Prop
Reviews:
Efficiency matters. 500SH pushes the limits to an impressive 3200 RPM on 4S with a 12T pinion at 425 watts, or fly it 3S on 15T for 2950 RPM on 335mm blades. Most flyers will want less RPM than this and I recommend a 13T for the 500SH. On top of that, most 3D pilots would opted for a 325mm blades.
Details here :
