T E A M
Most advanced fully programmable Plane/Glider/Heli ESC with built-in data logging
Hi Everyone,
I am pleased to announce that we are the authorised distributor for Jeti Brushless ESC and the stock are now in for the new Jeti SPIN ESC and programming/data logger Jeti-box. As an authorized distributor of Jeti model, we liase directly with Jeti so you can be assured of fast service.
New Jeti Spin Controllers
------------------------------------
Introducing the new Spin range of high performance speed controllers from Jeti model. These controllers
represent the lastest in brushless speed controller technology and have a huge amount of features including:

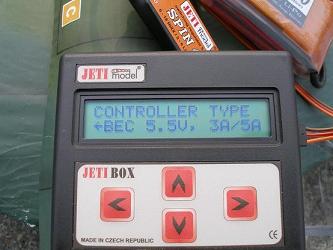

1) Switched mode BEC - no need to buy separate BEC if you need to use Lipo that are more than 3S
- can handle up to 5amps and run up to 8 servos.
- use of bec is independent of supply voltage, meaning the bec can power the servos/electronics even when using more than 3S compared to
the normal linear bec in most ESCs which requires an external bec when using more than 3s.
2) On board data logging capability
- SPIN controllers have a Data Logging function that lets you check and fine tune the setup of your airplane or helicopter. Readings for Peak controller temperature, Maximum current, Minimum current, RPM, Motor run time and many other parameters are recorded and can be viewed right on the SPIN BOX after a flight. This allows you to make adjustments immediately and fly again to see the results. Fine tuning your motor and propeller has never been easier.

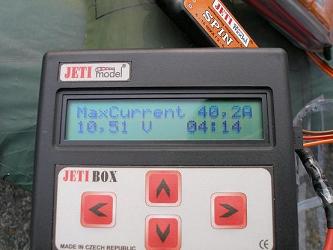

Max current drain for my Lehner motor setup shown below
Temperature of the ESC during flight

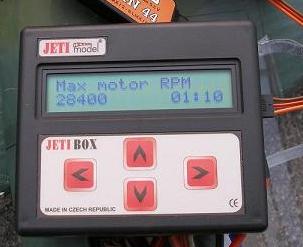

My motor RPM during flight
3) Jeti Spin Box
----------------------
The Jeti Box is designed for programming and to access the advanced features of SPIN controllers.
When used by itself, the Spin Box is a powerful testing tool:
- Measure receiver channel output pulse widths.
- Measure servo transfer speeds, either unloaded or in actual use in the aircraft.
- Servo pulse generator, center your servos without receiver and transmitter.
- Servo-cycler, check the function of your servos, from 10 to 990 cycles.
4) Programming with Jeti Box
- Jeti SPIN ESCs can be programmed either by your RC transmitter or with the SPIN BOX.They can be used either in airplanes, sailplanes, fix pitch or 3D helicopters (constant RPM). When the ESCs are used with the Jeti Box, more features can be programmed, one of the special feature is you can program the motor rpm which you want to fly at, this is especially useful for heli pilots who wants to fly at specific headspeeds.
The range of Spin ESCs will appeal to
- heli pilots, switched bec can power all on board electronics,no fear of bec burnt out,no need to use external bec, reading of rpm-no need to use tachometer to measure headspeed, programming of motor rpm - you can easily set the headspeed you want to fly at without use of tachometer.
- high cell count flyers, those who use more than 3s will not need to get external bec. saves $ saves weight.
- flyers who want more control and data logging features
- or simply flyers who want a reliable and high quality esc

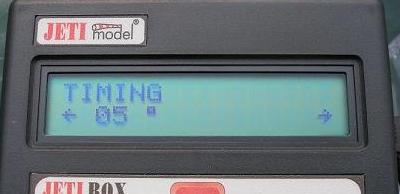

You can set any timing you want on your motor for efficiency or power, I set 5 degrees timing for my Lehner motor

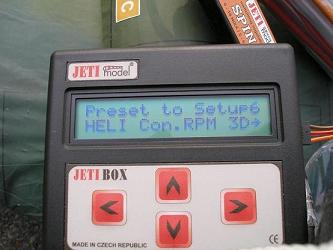

You can also use the preset settings eg. constant RPM for 3D heli
For more information on Jeti Spin controllers and Jeti box please refer to http://www.jetimodel.cz/eng/spin1_en.html
Retail Price
----------

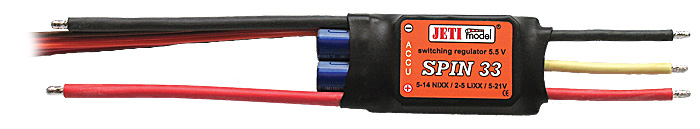

Spin 33 = S$149

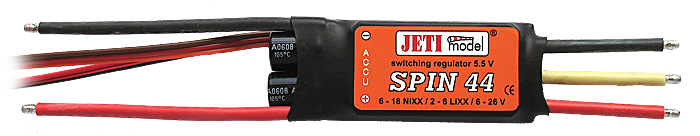

Spin 44 = S$206

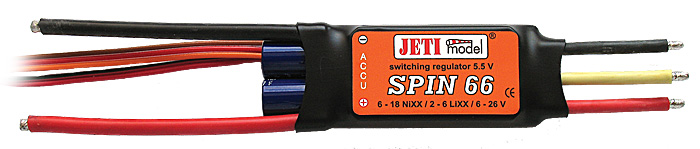

Spin66 = S$273
Jeti box = S$59
PM me for some real good discount
And remember, it's always best to get from authorised distributor
For other range of Jeti products please contact us for enquires.
WARRANTY
--------------
JETI has 2 year warranty on all its products and will repair or replace it at no charge if it fails to operate within 2 years from date of purchase.
After the warranty period: If JETI product quits working, JETI will replace it at a cost of half the current selling price of the unit.
As an authorized distributor of Jeti model, we liase directly with Jeti so you can be assured of fast service.
I am pleased to announce that we are the authorised distributor for Jeti Brushless ESC and the stock are now in for the new Jeti SPIN ESC and programming/data logger Jeti-box. As an authorized distributor of Jeti model, we liase directly with Jeti so you can be assured of fast service.
New Jeti Spin Controllers
------------------------------------
Introducing the new Spin range of high performance speed controllers from Jeti model. These controllers
represent the lastest in brushless speed controller technology and have a huge amount of features including:
1) Switched mode BEC - no need to buy separate BEC if you need to use Lipo that are more than 3S
- can handle up to 5amps and run up to 8 servos.
- use of bec is independent of supply voltage, meaning the bec can power the servos/electronics even when using more than 3S compared to
the normal linear bec in most ESCs which requires an external bec when using more than 3s.
2) On board data logging capability
- SPIN controllers have a Data Logging function that lets you check and fine tune the setup of your airplane or helicopter. Readings for Peak controller temperature, Maximum current, Minimum current, RPM, Motor run time and many other parameters are recorded and can be viewed right on the SPIN BOX after a flight. This allows you to make adjustments immediately and fly again to see the results. Fine tuning your motor and propeller has never been easier.
Max current drain for my Lehner motor setup shown below
Temperature of the ESC during flight
My motor RPM during flight
3) Jeti Spin Box
----------------------
The Jeti Box is designed for programming and to access the advanced features of SPIN controllers.
When used by itself, the Spin Box is a powerful testing tool:
- Measure receiver channel output pulse widths.
- Measure servo transfer speeds, either unloaded or in actual use in the aircraft.
- Servo pulse generator, center your servos without receiver and transmitter.
- Servo-cycler, check the function of your servos, from 10 to 990 cycles.
4) Programming with Jeti Box
- Jeti SPIN ESCs can be programmed either by your RC transmitter or with the SPIN BOX.They can be used either in airplanes, sailplanes, fix pitch or 3D helicopters (constant RPM). When the ESCs are used with the Jeti Box, more features can be programmed, one of the special feature is you can program the motor rpm which you want to fly at, this is especially useful for heli pilots who wants to fly at specific headspeeds.
The range of Spin ESCs will appeal to
- heli pilots, switched bec can power all on board electronics,no fear of bec burnt out,no need to use external bec, reading of rpm-no need to use tachometer to measure headspeed, programming of motor rpm - you can easily set the headspeed you want to fly at without use of tachometer.
- high cell count flyers, those who use more than 3s will not need to get external bec. saves $ saves weight.
- flyers who want more control and data logging features
- or simply flyers who want a reliable and high quality esc
You can set any timing you want on your motor for efficiency or power, I set 5 degrees timing for my Lehner motor
You can also use the preset settings eg. constant RPM for 3D heli
For more information on Jeti Spin controllers and Jeti box please refer to http://www.jetimodel.cz/eng/spin1_en.html
Retail Price
----------
Spin 33 = S$149
Spin 44 = S$206
Spin66 = S$273
Jeti box = S$59
PM me for some real good discount
And remember, it's always best to get from authorised distributor
For other range of Jeti products please contact us for enquires.
WARRANTY
--------------
JETI has 2 year warranty on all its products and will repair or replace it at no charge if it fails to operate within 2 years from date of purchase.
After the warranty period: If JETI product quits working, JETI will replace it at a cost of half the current selling price of the unit.
As an authorized distributor of Jeti model, we liase directly with Jeti so you can be assured of fast service.
