FUTABA T6XHs FM RADIO ADDED ASSAN 2.4 X8D HACK MODULE

[alex_bong]

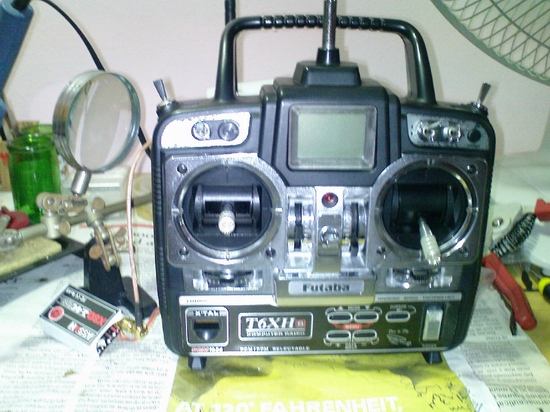

After some reading on net. Finally bought a set of Assan X8D hack module 2.4system to 'upgrade my old Futaba T6XHs FM/PPM radio/TX

System tested work. Bonus is work on my Hitec Flash 4 TX too...wahaha...will the range test after this.

this is what i bought:
1x ASSAN X8D HACK MODULE.
1X ASSAN X8 R7 (RX).
1x servo male connector
1x 6pin DIN round connector for trainer port.

[alex_bong]

the video

http://www.youtube.com/watch?v=CaeIK-FLUIg

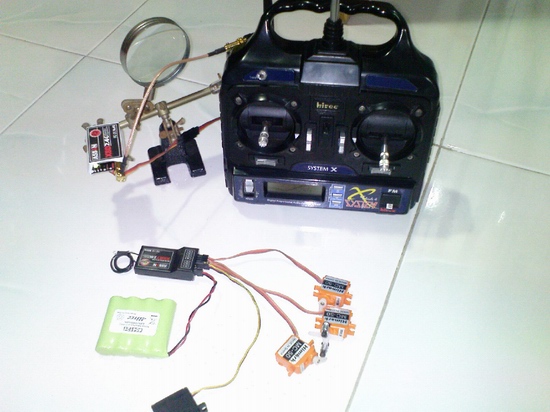

[alex_bong]

Hitec

http://www.youtube.com/watch?v=vPhVcD4hyuM

[alex_bong]

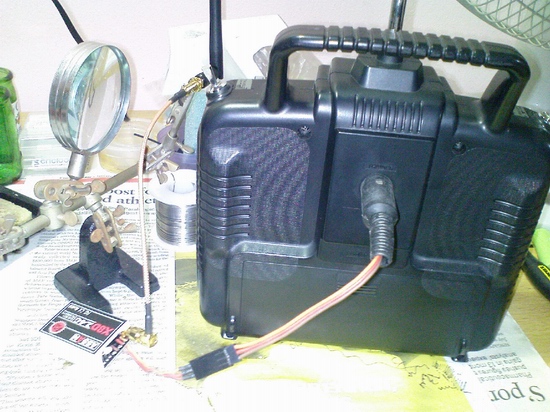

Tested

Done the range test at JB Sultan polo field. with my wife holding the tx wait for my instruction via hp, i walked far away to the other end of the field ard +-1000m. With both tx and rx ard +-1m above the ground. it's work in good respond..

then tested the system with my Trex450XL. I just direct change the ori futaba fm rx to the Assan X8 rx. that's all, nothing is change in the tx setting.
So the result=all work as normal...

[alex_bong]

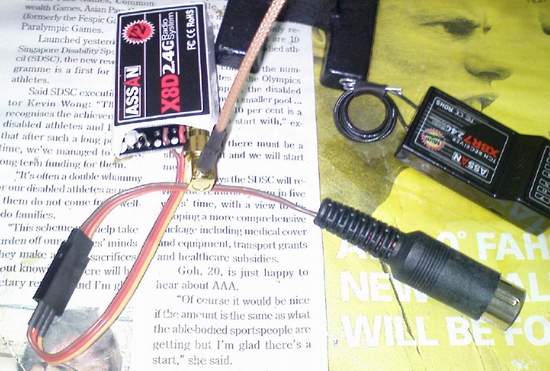

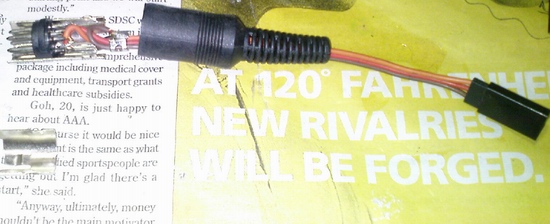

building photos

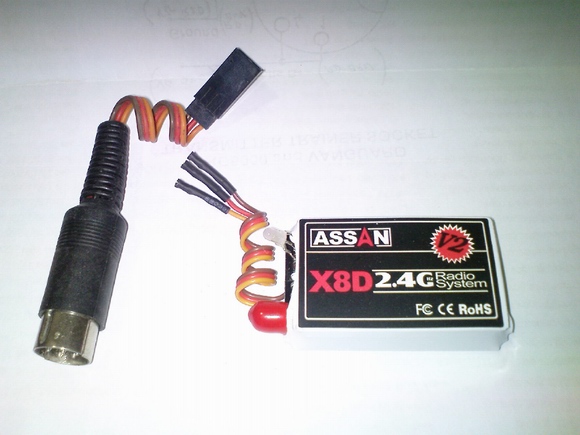

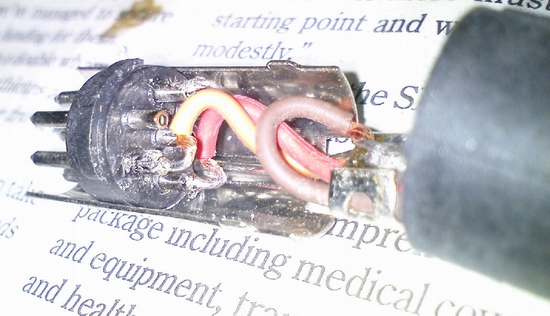

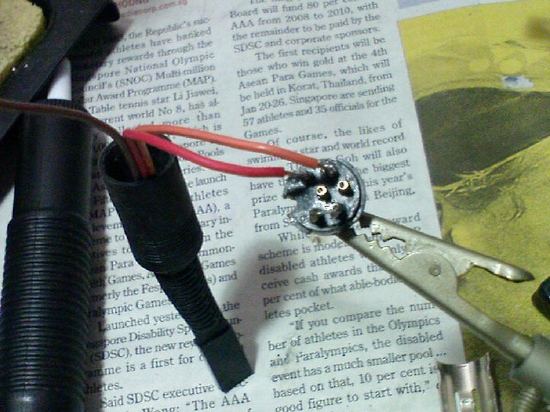

somemore photo on the making of plug.

[alex_bong]

pinout

the pinout:

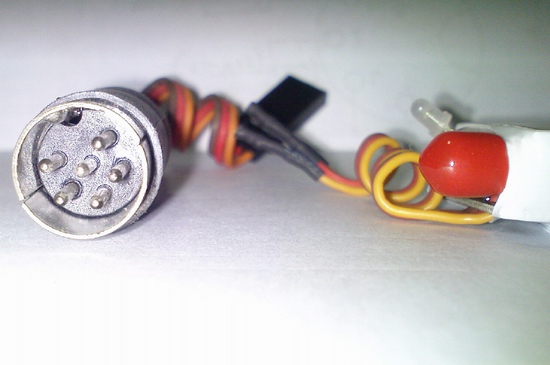

View at soldering face of 6pin DIN plug.

2o
4o 5o
6o
1o 3o

Pin 1=solder '+'power(red) wire from module.
Pin 4=solder signal(orange) wire from module.
Shield/metal housing=solder '-'power wire(GND) from module.

The 3 lead on the module actually is the female servo connector without housing. So i soldered a male servo connector to the DIN plug then connecting to module's lead more ezy.
that's all.

[alex_bong]

Pinout

U might want to check here for pinout pics

http://www.mftech.de/buchsen_en.htm

http://users.belgacom.net/TX2TX/tx2tx/english/tx2txgb1.htm

[zxyong]

Anyone mod this to a optic 6 sport or any hitec tx yet? Im thinking of modding my tx too. Looks cool.

[alex_bong]

Mod For Hitec

anyone Mod This To A Optic 6 Sport Or Any Hitec Tx Yet? Im Thinking Of Modding My Tx Too. Looks Cool.

If Not Wrong Optic 6 Using Module On The Back Right?
Then Direct Buy A Module Combo With Rx And Change The Fm Module Will Do. For Ur Info The Hitec Module Shld Use Futaba 1. Theythey Shld Compatible.

[zxyong]

If Not Wrong Optic 6 Using Module On The Back Right?
Then Direct Buy A Module Combo With Rx And Change The Fm Module Will Do. For Ur Info The Hitec Module Shld Use Futaba 1. Theythey Shld Compatible.

Nah, min is sport version, is crystal behind.

[alex_bong]

hitec module

Nah, min is sport version, is crystal behind.

Hi bro. if i not wrong ur tx crystal is on the module. behind the tx. the module is the little sq box thingy like matchessbox pluged on ur tx.

Saw the feature said: Optic 6 Transmitter with 'HPF-Mi RF Module', that's is.

http://shop.rotor.com.sg/show-detail.asp?prodid={AD32AE9B-B9A5-41C6-9B1B-5AF3D84AD220}&pn=1

[zxyong]

No, mine is not optic 6, its optic 6 sport. Crystal one, not module.

[alex_bong]

Sanwa/Airtronics add-on Assan X8D Hack 2.4Ghz module

Made a plug for my RDS8000.
System tested work.
Now all my FM radio can use this X8D module already...wahahah....

this is the parts:
1x ASSAN X8D HACK MODULE.
1X ASSAN X8 R7 (RX).
1x servo male connector
1x 5pin DIN round connector for trainer port.


Video:

http://www.youtube.com/watch?v=w1RjvErbA_4

[alex_bong]

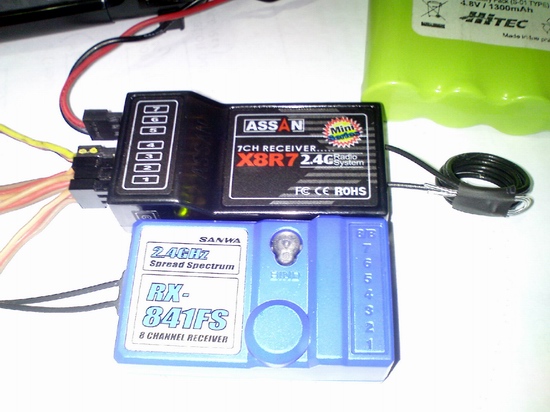

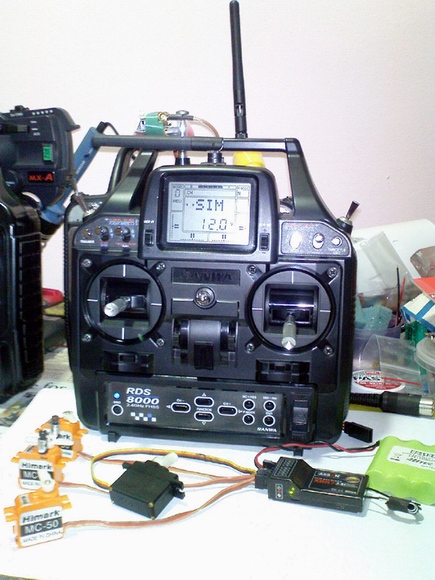

more photo

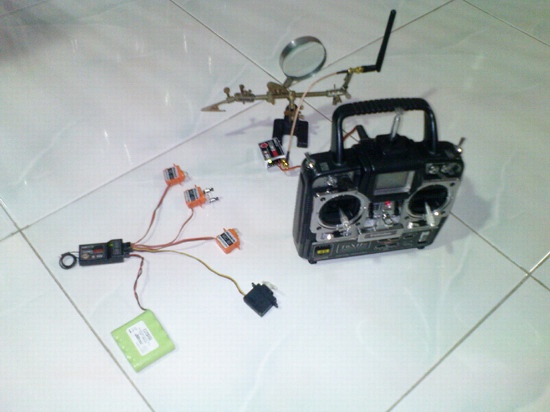

tested with servos. Now only problem is how to off the built-in 2.4 freq. Currently both system on togather.

[alex_bong]

RDS pinout

The 5 pin Din pinout here is:

1=signal
2=(-)
3+5=(+)

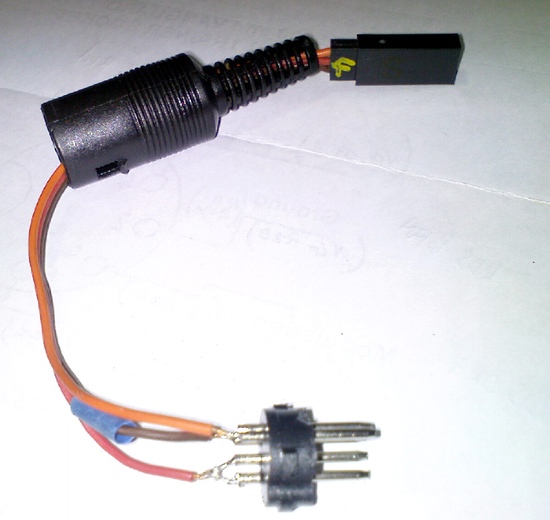

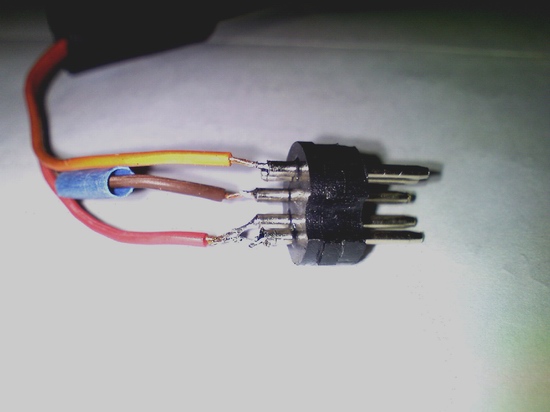

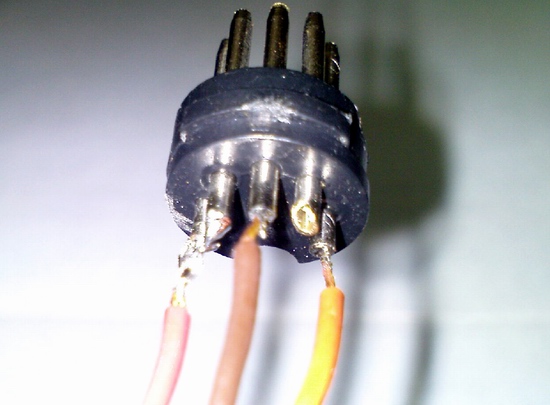

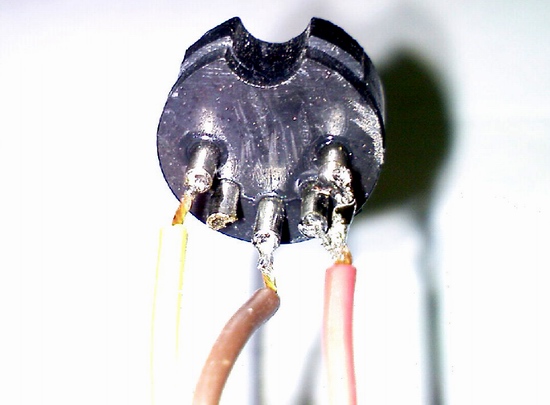

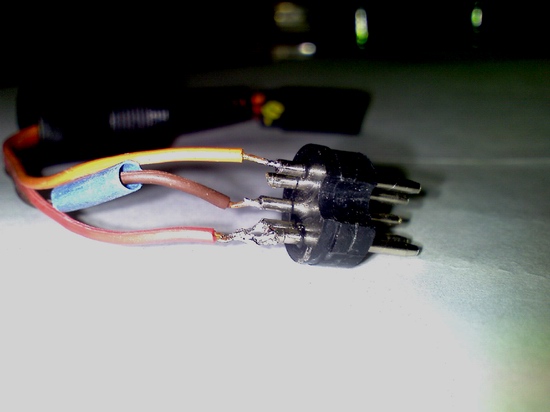

See my photo u can see:
orange= signal
red= (+)
brown=(-)
