Pics of JR 9x needed

[mtnbikefreak]

Hi guys (owners of JR9x),

Hope that you can help. I just aquired a hand me down 9x. However it has been modified at the batt area and the charging connector removed. I would want to use the rechargeable ni-cd battery.

Could I trouble you guys to take some pictures of the battery area, and from the insides to showing the 12dc conn and how it is connected to the pcb ?

Thanks in advance.

[mtnbikefreak]

What are labels b1 & b2 and a1 & a2 connected to ?

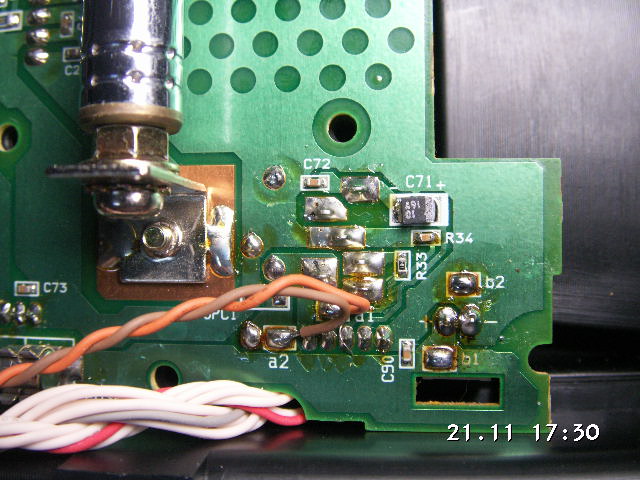

Please refer to the pic.

a1 : orange wire
a2 : brown wire

b2 : -
b1 : +

Just need to confirm the connections. Hope that you guys can confirm where it goes to.
