de Havilland Canada Dash-8 construction

[joe yap]

I bought my 1mm clear PVC sheets from the shop beside Jet Hobby in Fook Hai Building. For white PVC, I bought mine from Art Friend in Bras Basah complex.

[joe yap]

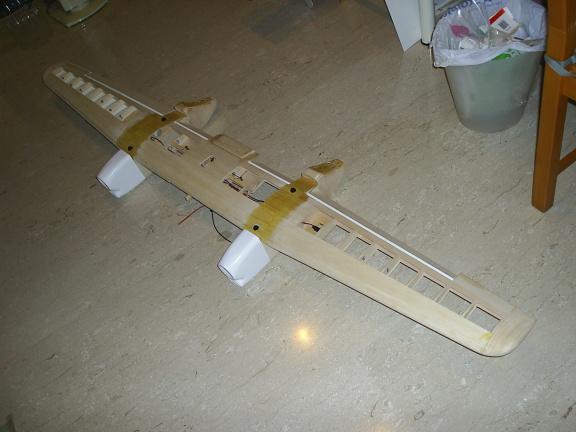

The nacelles are fitted on. Each one has 2 nylon bolts holding them together and hopefully shear off during bad landings.

[joe yap]

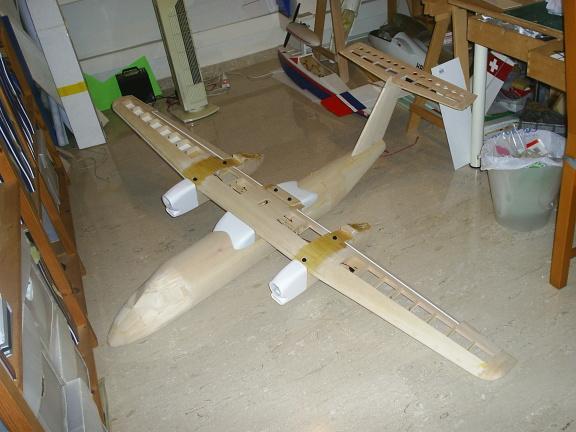

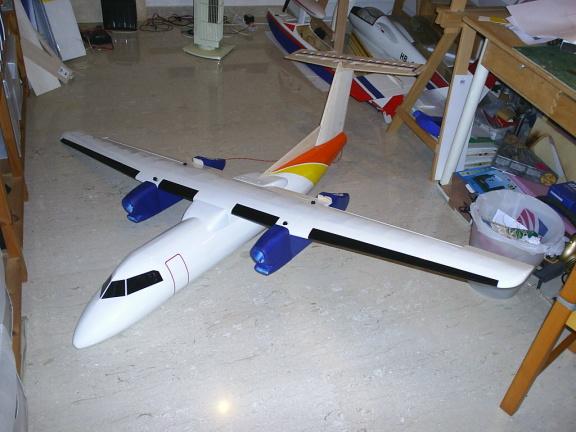

This is how it looked like at this stage with the major structures in place. Not much to build other than the dorsal fin, tail cone and the rudder.

[joe yap]

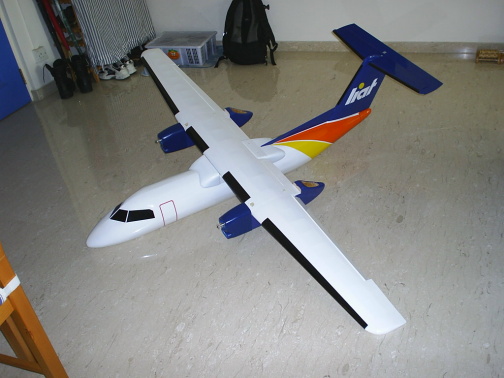

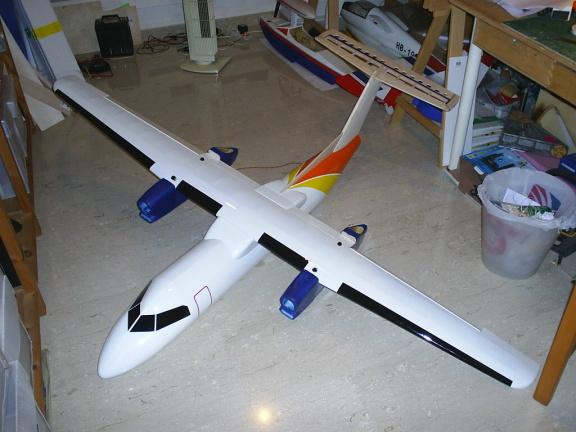

The wings, nacelles and fuselage is covered with iron-on films. The cowling are given a coat of paint.

[joe yap]

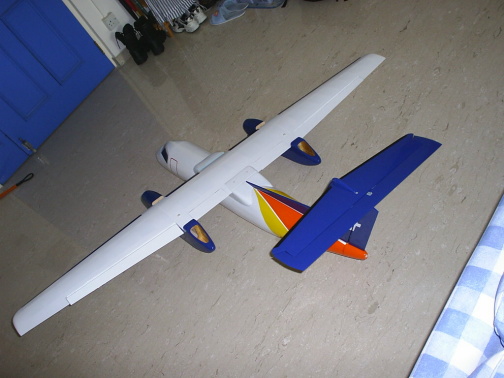

The tail surfaces are also covered with film. I downloaded the logo, traced it on Autocad and hand cut it out of Monokote using the print.

[joe yap]

Landing gears are mounted in place. The nose gear has its steering linkages connected to the rudder servo. I modified the Dubro landing gear axle fittings for tandem wheels. The original wheels are foam tires with aluminium hubs. These have hardly any shock absorbing effect on landings and were later replaced with Dubro rubber wheels.

[joe yap]

For your information, the main gears are actually retracts from Champion Hobby but I deactivated them. Their mounting system is much easier than most fixed gears as each unit only requires 4 screws mounted on the flanges.

[joe yap]

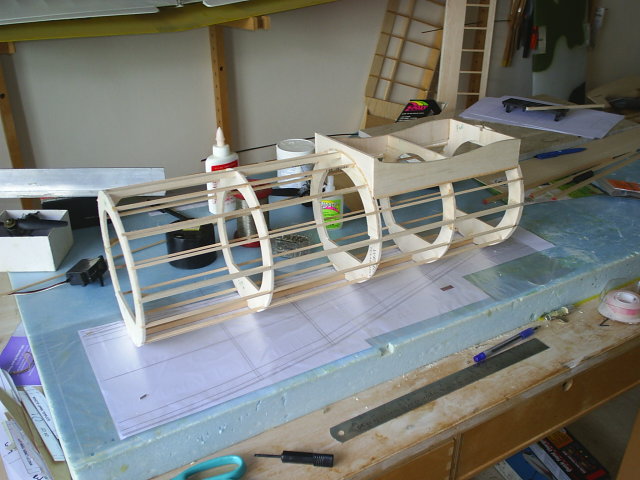

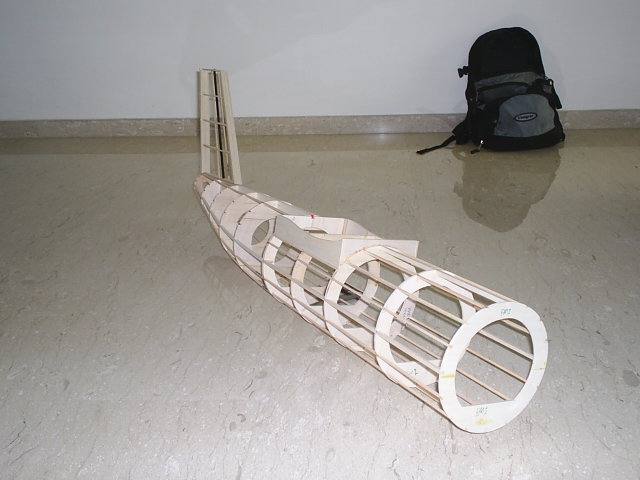

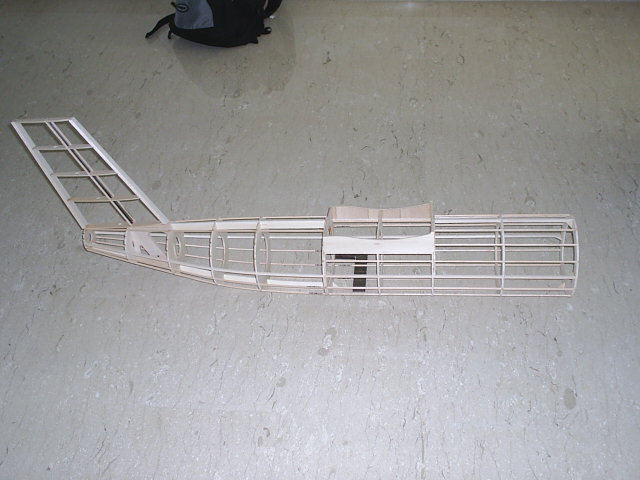

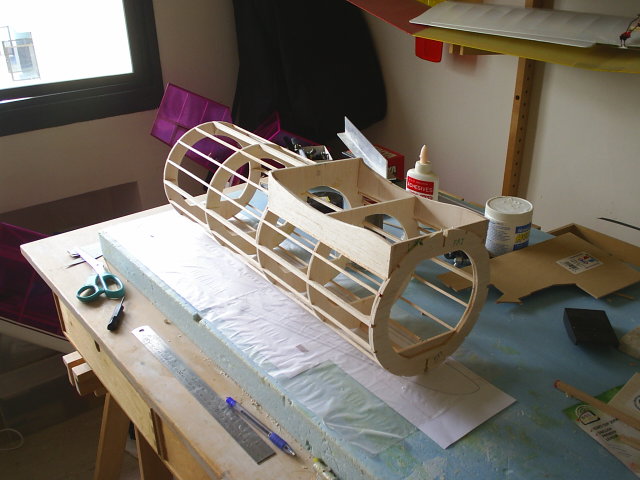

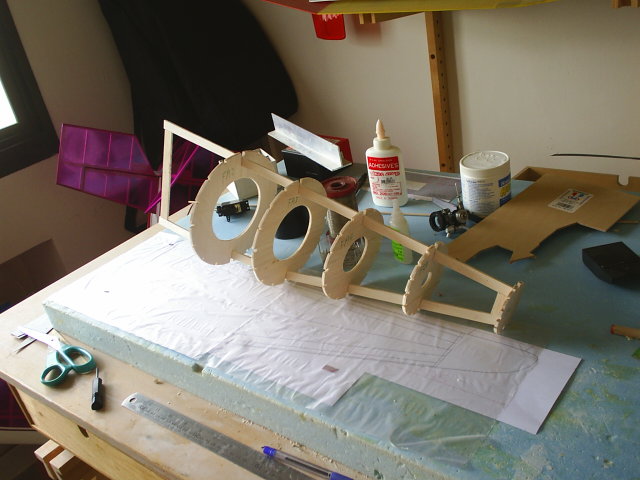

Oh, I'd just did some computer house keeping and found these pictures of the early stages of the fuselage constructions. Now you can see the 'bird cage'.

[Tony]

Beautiful! When it comes to scratch building, in my books - you da Man!

[joe yap]

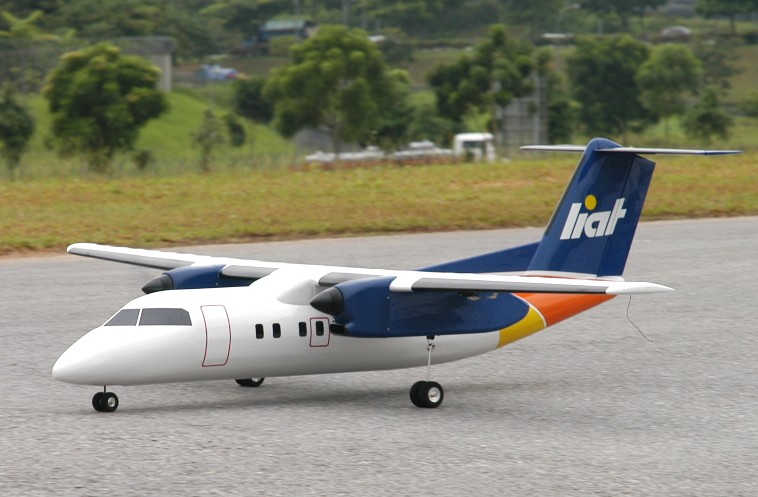

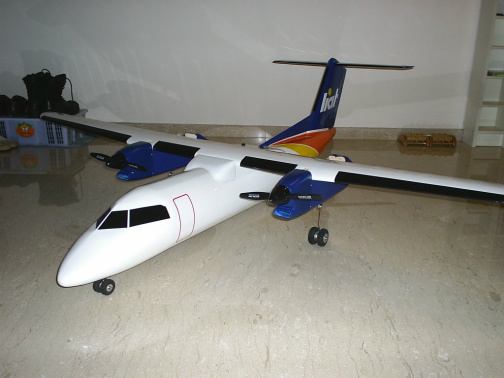

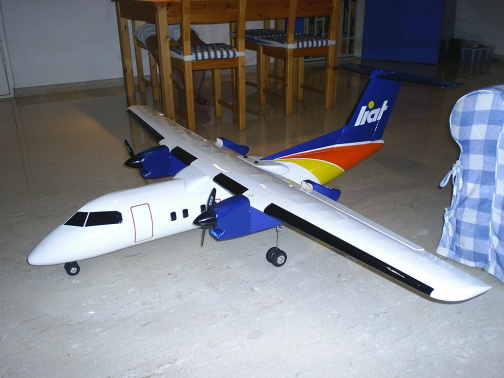

With the nacelle-to-wings fairings in place, the entire airframe structure is certified completed. With all equipment and powerplant installed, this bird is ready to take-off at 3.4kg AUW.

Vital Specs are as follows:

Span : 79"
Wing area : ~ 620 sqin
Airfoil : Douglas LA203A
Fuselage length : 58"
All Up Weight : 3.4kg
Powerplant : 2 x Permax 600, 2.9:1 gearbox and 10x8 MA prop
Battery : 10x3300 nimh / 10x3700nimh

[joe yap]

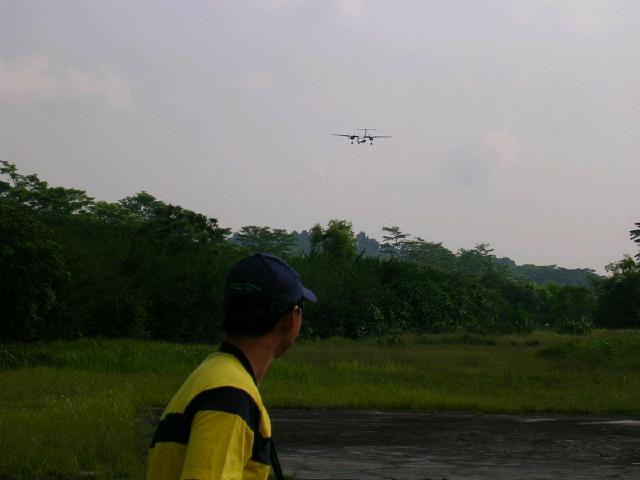

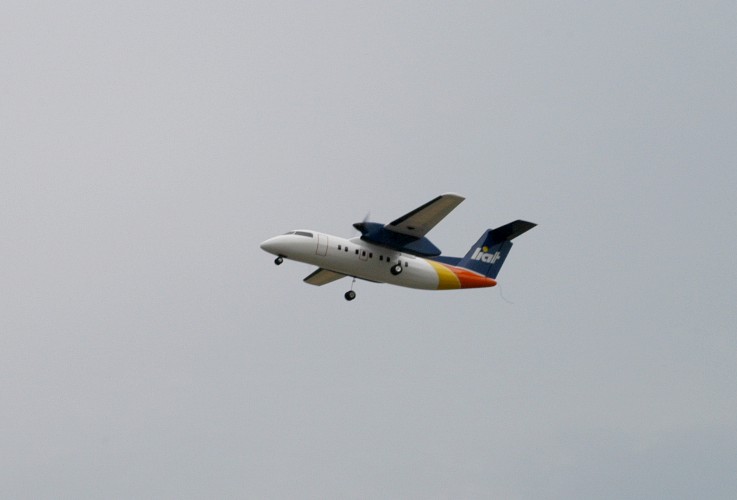

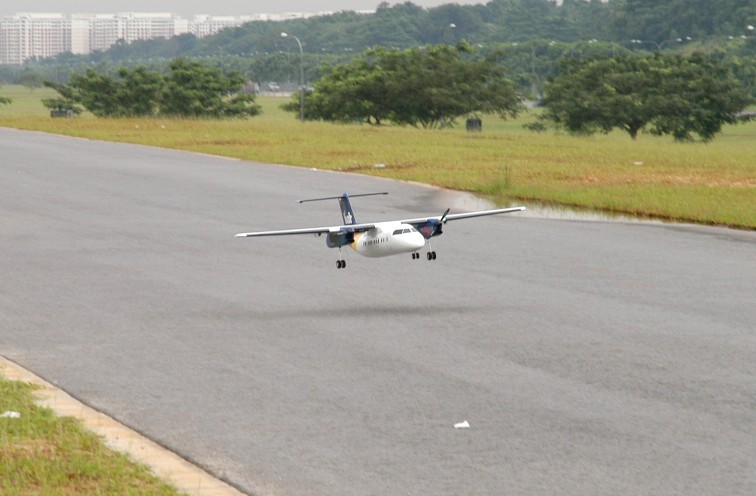

Flight shots. Courtesy from the fellow DH modellors.

[joe yap]

Some pictures from the DHMM2.

[joe yap]

Thanks for viewing. Feel free to drop me a post or PM if you have any enquiry regarding the build.

[lu wei yao]

Wow Joe! Like i have always believed, You are the master!

Thanx!

[joe yap]

Thanks, but the real masters are always somewhere out there.
