Coro VTOL

[mechplas]

Almost done, the coro version of the VTOL from RCGroups. Modified fuse length shorter by 21/2 inches

The specs:

3mm Corrugated plastic all round
PVC horns and doublers
Push-pull all round
3 x Hited HS55 (Elevon n Rudder)
Axi 2212/34
Prop MAS 11 x 7
Amp draw 11.1A
ESC CC25P
Rx Hitec HFS-04MG 4 channel micro receiver single conversion
Etec 3S1P 1250mAh
Right Thrust (1º...I think)
AUW 470grams 16.5oz

[mechplas]

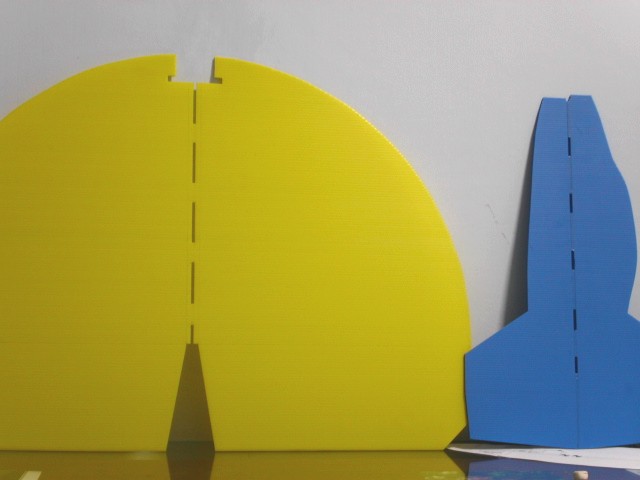

The slots are for proper sitting and aids in the alignment.

[mechplas]

The motor mount is hardwood, epoxied.

[mechplas]

The fuse and the wings are also epoxied.

[mechplas]

Testing the mount w Axi

[mechplas]

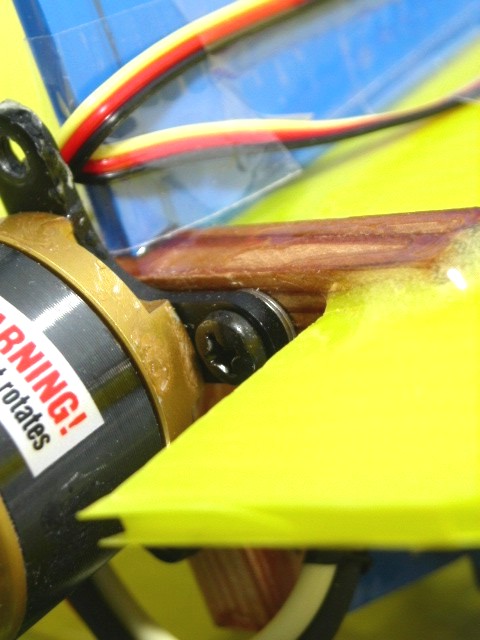

Washers are used at the back of the radial mount to give the right thrust.

[mechplas]

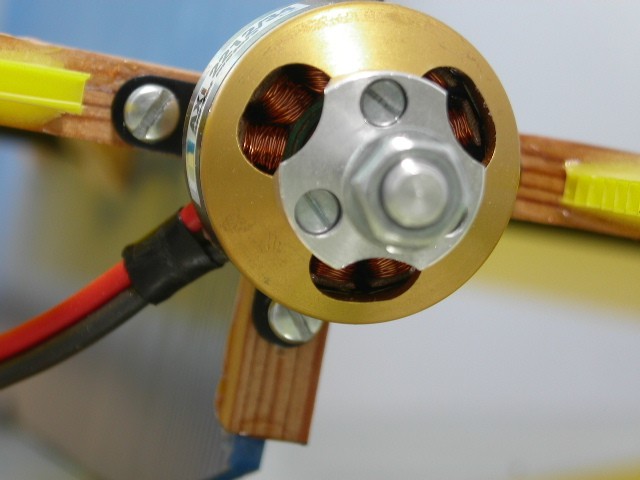

Final position of the motor with two washers at right and bottom of the radial axis.

[mechplas]

5mm carbon tube is CA'ed to the coro. Later epoxy is applied.

[mechplas]

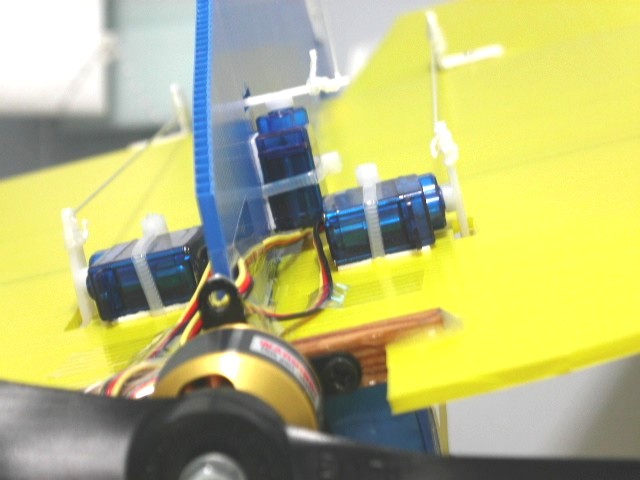

Servos are stuck onto the coro surface with double sided sponge tapes and tied down w cable ties.

[mechplas]

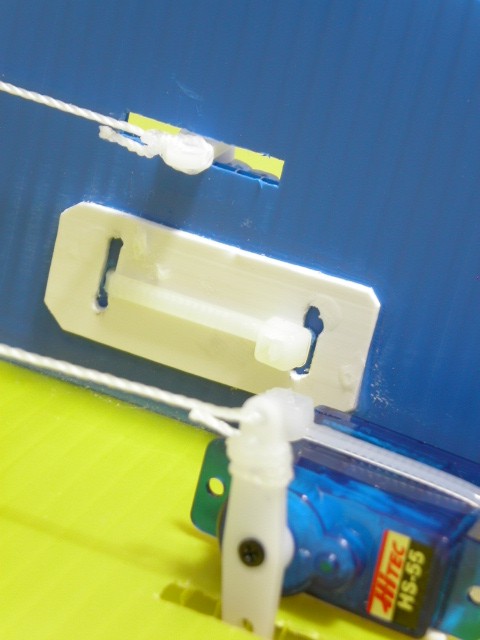

PVC doublers are CA'ed at the back of the coro surface to receive pressures from the servos.

[mechplas]

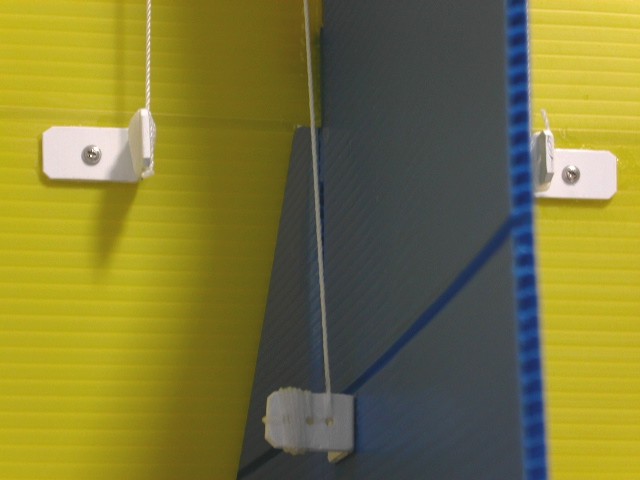

PVC horns are also CA'ed to the coro surface with the screws that came with the HS55 servos. The string for the Push/pull system is also Ca'ed to the PVC horns.

[mechplas]

The Prop is MAS 11 x 7. This combination draws 11.1amps. But yet to find out its performance. When full throttle, while the aircraft is held w my hand, wants to move up. I guess this is a good sign.

[mechplas]

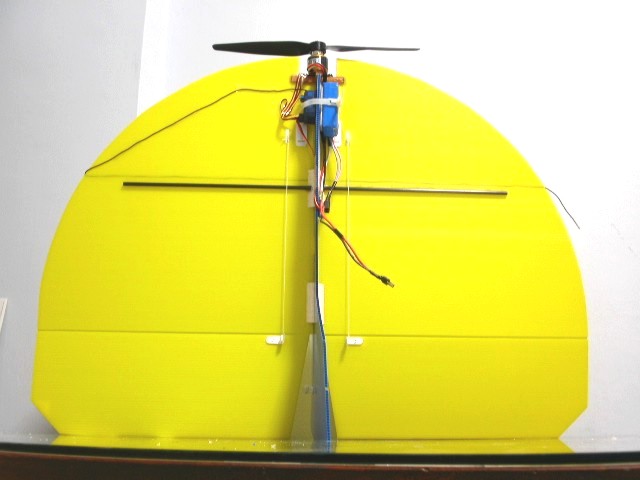

The batt and Rx are at the underside, towards the nose, just behind the prop. The BAtt is velco support and the Rx is sponge tape. Further held down by cable tie with release.

[mechplas]

Now just thinking of weather to mount CF or wood landing gear for the vertical take off.....

[csisfun]

Eh!!!

I've always wanted a VTOL... Ra, after u're done with it, can I have it XD?

Anyway, I suggest you use a 10x4.7 or 11x4.7 SF prop, more thrust!
