CNC Heli Boom Support

[HZM]

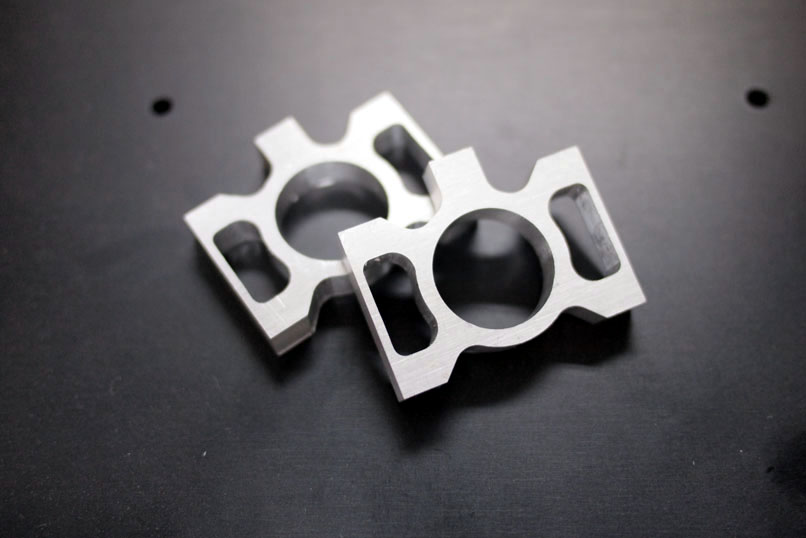

Requested by JYHELI, heres a preview of a pair of custom boom support.

Width 47mm and dia. 22mm x 8mm thick AL6061

Raw material is cut to size using Proxxon FET table.

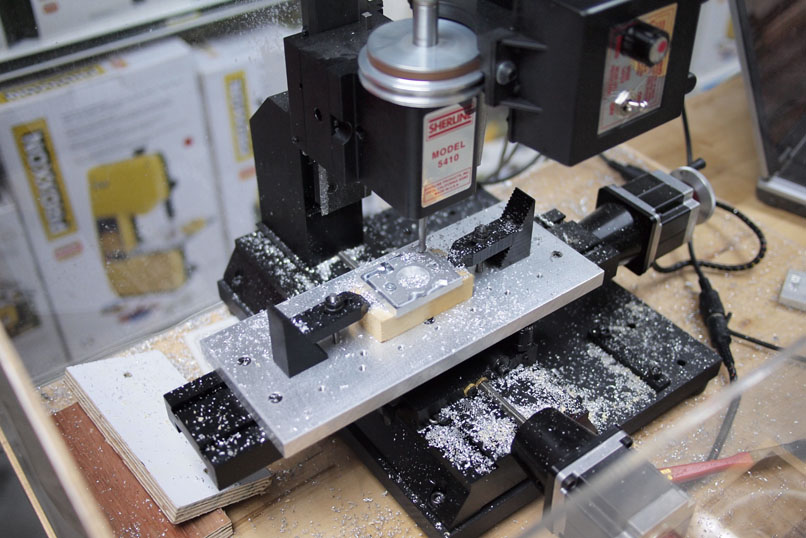

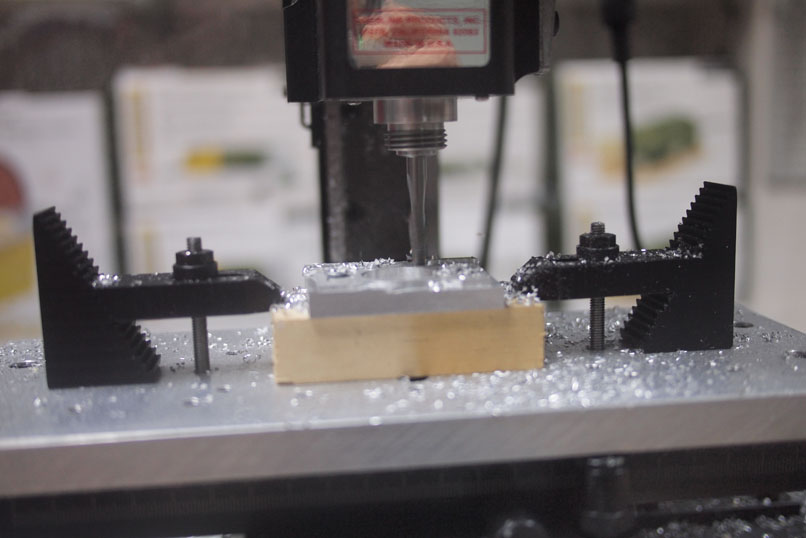

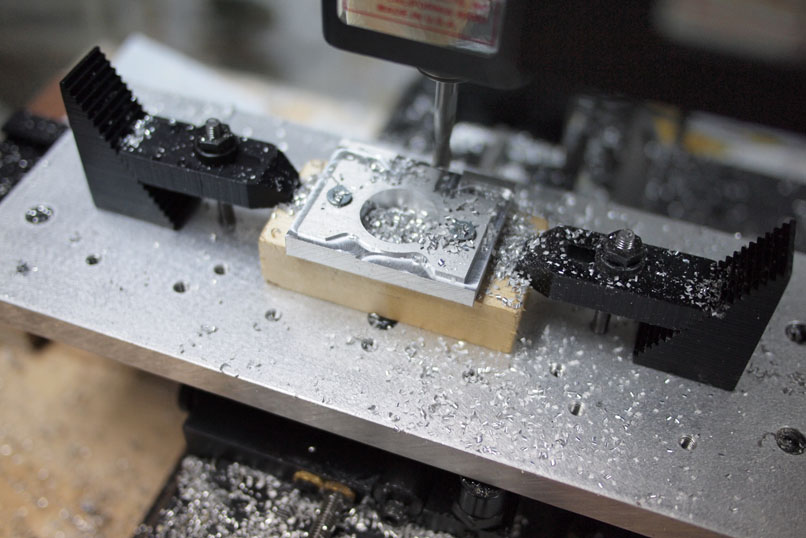

After which part is put on Sherline CNC machine for the rest of the operation.

Mike <br> <br>

[genexis]

how did you drill the side mounting holes ?
agaration?

[HZM]

I use a Proxxon drilling machine and locate manually.

You can setup CNC G-Code and use a dial test indicator to align the part.

Then use an edge finder to local the edge of the part accurately to get X0Y0 ... http://shop.sgtooling.com/index.php?...&productId=137



<object style="height: 344px; width: 425px"><param name="movie" value="http://www.youtube.com/v/f0od-cp_9dg"><param name="allowFullScreen" value="true"><param name="allowScriptAccess" value="always"><embed src="http://www.youtube.com/v/f0od-cp_9dg" type="application/x-shockwave-flash" allowfullscreen="true" allowScriptAccess="always" width="425" height="344"></object>

[JYZoom]

Got my stuff today

Mike,

Thanks for getting this done for me....

Jonathan

[pilot_bear]

Nice.
