Selling: AT-DR6 Dual Conversion 40MHZ Full Range Receiver
Bought from
Selling for S$40 only
Please PM me if interested.

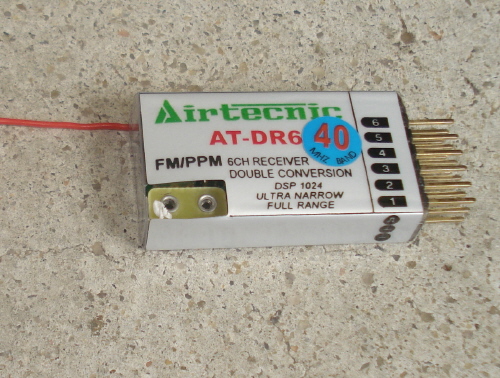

Full range(1km)lightest 8.8g and full performance DSP, Ultra narrowband Dual Conversion receiver. AT-DR6 Dual Conversion Receiver is compatible with JR, Futaba, Esky, GWS, TDF, & Hitec transmitters.
Decoded by the onboard microprocessor, the resolution reaches 1024 in order to adapt to the digital servo and accurate servo. it rejects the glitch strictly. Compared with Single Conversion receiver, Dual Conversion receiver can reject mirror frequency more effectively if they have the same components and use the same DSP algorithm. Thus, it gets more reliability. For adjacent channel interrupt (with the transmitters of channel 50, 51, 52, 53 working together, and not far way form them), AT-DR6 can reject it more effectively.
The full range and full performance of AT-DR6 can be used in the occasion when long range is needed, such as the glider and large-scale glow plane. In addition, AT-DR6 can guarantee the safety of the fly.
Specifications:
Sensitivity: about 2.0¦ÌV
Range: more than 3300 feet, 1km
Selectivity: 8kHz at 65dB down
Filtering: Dual turned RF circuitry
Filtering: Dual 4 element ceramic filter
Filtering: DSP filtering in MCU with mild algorithm
Shift polarity: positive or negative (auto-detect)
Modulate: FM/PPM(pulse position modulation)
Case: Shrink wrap
Operating Voltage: 4.8V~6.0VDC
Operating Current: 11mA
Weight: 0.25oz/7.2g (with shrink wrap)
Number of channels: 6ch
Size: 1.4”x0.7”x0.3”(35x19.5x7.8mm)
Crystal: Dual Conversion (not included)
Bought from
Selling for S$40 only
Please PM me if interested.
Full range(1km)lightest 8.8g and full performance DSP, Ultra narrowband Dual Conversion receiver. AT-DR6 Dual Conversion Receiver is compatible with JR, Futaba, Esky, GWS, TDF, & Hitec transmitters.
Decoded by the onboard microprocessor, the resolution reaches 1024 in order to adapt to the digital servo and accurate servo. it rejects the glitch strictly. Compared with Single Conversion receiver, Dual Conversion receiver can reject mirror frequency more effectively if they have the same components and use the same DSP algorithm. Thus, it gets more reliability. For adjacent channel interrupt (with the transmitters of channel 50, 51, 52, 53 working together, and not far way form them), AT-DR6 can reject it more effectively.
The full range and full performance of AT-DR6 can be used in the occasion when long range is needed, such as the glider and large-scale glow plane. In addition, AT-DR6 can guarantee the safety of the fly.
Specifications:
Sensitivity: about 2.0¦ÌV
Range: more than 3300 feet, 1km
Selectivity: 8kHz at 65dB down
Filtering: Dual turned RF circuitry
Filtering: Dual 4 element ceramic filter
Filtering: DSP filtering in MCU with mild algorithm
Shift polarity: positive or negative (auto-detect)
Modulate: FM/PPM(pulse position modulation)
Case: Shrink wrap
Operating Voltage: 4.8V~6.0VDC
Operating Current: 11mA
Weight: 0.25oz/7.2g (with shrink wrap)
Number of channels: 6ch
Size: 1.4”x0.7”x0.3”(35x19.5x7.8mm)
Crystal: Dual Conversion (not included)
