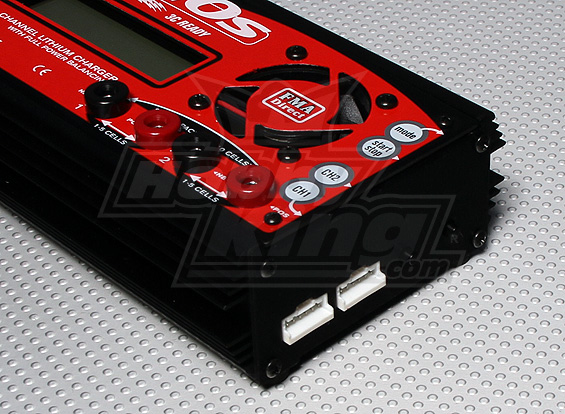

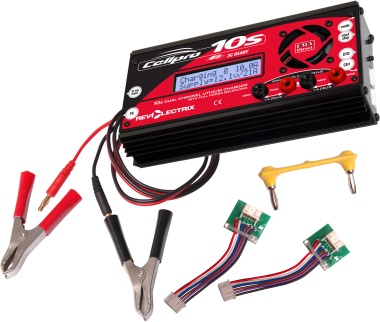

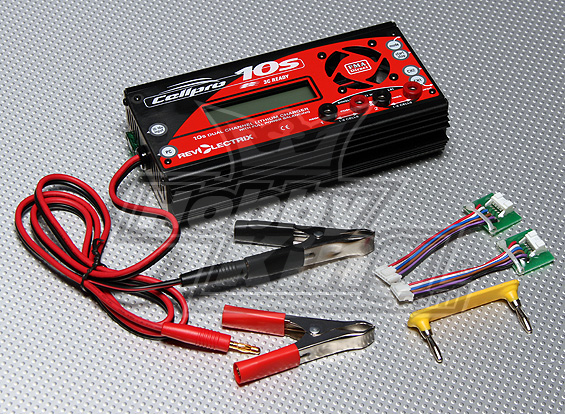

WTS - CellPro 10S 260W 10A Balancer/Charger
I have two sets of Revolectrix CellPro 10S 260W 10A Balancer / Charger @ $130 each
Condition 9/10
Supports up to 10A max charge rates and Auto Charge rates (1.0C, 2.0C & 3.0C)
The 10s is capable of safely charging one or two lithium battery packs at up to a 3C charge rate
Battery types supported are:
Lithium Polymer (1s to 10s balanced)
Lithium Ion (1s to 10s balanced)
Lithium Manganese (1s to 10s balanced)
A123 (LiFePO4) (1s to 10s balanced)
Pack capacity: 100 mAh to 65Ah (charge time limited to max 12 hours)
Input voltage: 10-16VDC, reverse polarity protected
Input current: 1A to 25A, software limited, user adjustable using PC software
Power conversion: DC/DC converter, 62.5 kHz, 80% to 90% efficiency depending on output current
Nominal Output Voltage: 3.60, 4.10, and 4.20 volts per cell; 42V maximum
Output battery charge current: Adjustable range 100mA to 10A, or 100mA to 4A (node only charging), limited by 25A input current*
Continuous max output power: 180W @ +12VDC input, 260W @ +15.7VDC input
Voltage calibration: Cell voltage measurements are factory calibrated to a standard traceable to NIST; calibration is to +/- 6 mV
Current calibration:Charge current is factory calibrated on a 4A standard; calibration is to +/- 1mA
Measurement accuracy:
Voltage resolution: 0.1mV
Voltage tolerance: +/- 6mV
Charge current: +/- 1%
Capacity added to pack: +/- 1%
Percent capacity (?Fuel?): +/- 20%
Serial data output: 19.2kbps, 8 bits, 1 start bit, 1 stop bit, no parity
Data integrity: Checksum, CRC checking
Cooling fans: Single, 8 CFM, 40mm diameter
Heat sink: aluminum case, finned
Output battery connector: ?Cellpro? compatible, 2 x JST PA series, 6 position
LCD: 2 line, 16 character, light grey/blue backlit
NOTE: Balancing boards are not included but can get easily from local hobby shop
Condition 9/10
Supports up to 10A max charge rates and Auto Charge rates (1.0C, 2.0C & 3.0C)
The 10s is capable of safely charging one or two lithium battery packs at up to a 3C charge rate
Battery types supported are:
Lithium Polymer (1s to 10s balanced)
Lithium Ion (1s to 10s balanced)
Lithium Manganese (1s to 10s balanced)
A123 (LiFePO4) (1s to 10s balanced)
Pack capacity: 100 mAh to 65Ah (charge time limited to max 12 hours)
Input voltage: 10-16VDC, reverse polarity protected
Input current: 1A to 25A, software limited, user adjustable using PC software
Power conversion: DC/DC converter, 62.5 kHz, 80% to 90% efficiency depending on output current
Nominal Output Voltage: 3.60, 4.10, and 4.20 volts per cell; 42V maximum
Output battery charge current: Adjustable range 100mA to 10A, or 100mA to 4A (node only charging), limited by 25A input current*
Continuous max output power: 180W @ +12VDC input, 260W @ +15.7VDC input
Voltage calibration: Cell voltage measurements are factory calibrated to a standard traceable to NIST; calibration is to +/- 6 mV
Current calibration:Charge current is factory calibrated on a 4A standard; calibration is to +/- 1mA
Measurement accuracy:
Voltage resolution: 0.1mV
Voltage tolerance: +/- 6mV
Charge current: +/- 1%
Capacity added to pack: +/- 1%
Percent capacity (?Fuel?): +/- 20%
Serial data output: 19.2kbps, 8 bits, 1 start bit, 1 stop bit, no parity
Data integrity: Checksum, CRC checking
Cooling fans: Single, 8 CFM, 40mm diameter
Heat sink: aluminum case, finned
Output battery connector: ?Cellpro? compatible, 2 x JST PA series, 6 position
LCD: 2 line, 16 character, light grey/blue backlit
NOTE: Balancing boards are not included but can get easily from local hobby shop
