Skookum Product Update

[Zenmtech]

Hi,

Please note that the firmware/software V3.40 for SK540 and SK720 has been released.
You can download it from http://www.skookumroboticsasia.com/en/?page_id=15.

[Zenmtech]

Video of SK540 testing with new software V3.40 (with new RPM GOV software).

[Zenmtech]

Sk-720

Hi,

The second shipment of SK720 (BE) and GPS have just arrived in Singapore.

The following is a video link of the test flight of SK720 by a Skookum pilot, Edwin Lee.

https://www.facebook.com/photo.php?v=10151720781764578

Hope to have a local test flight soon.

[Zenmtech]

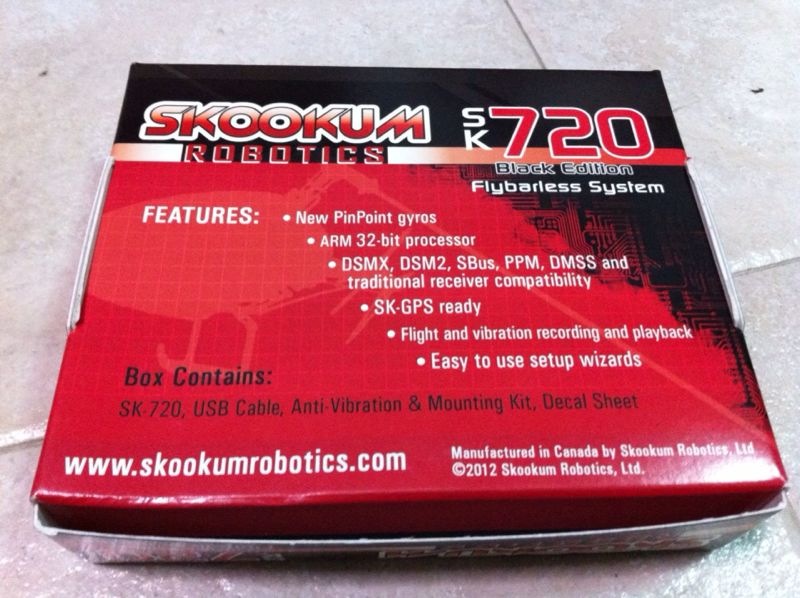

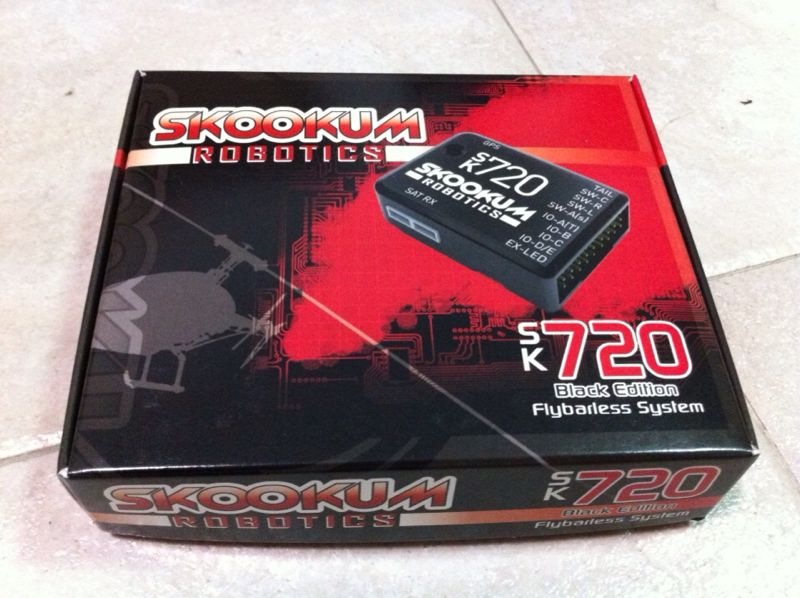

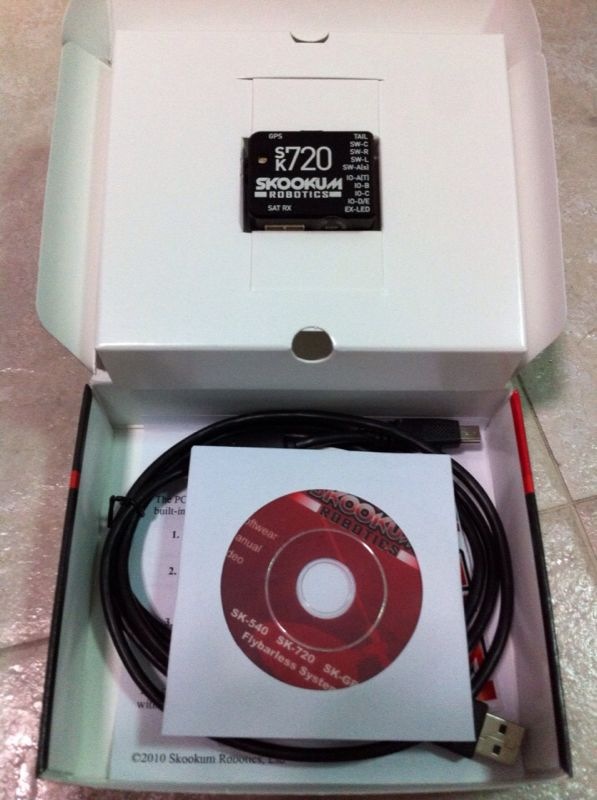

Some pictures of the SK-720 BE.

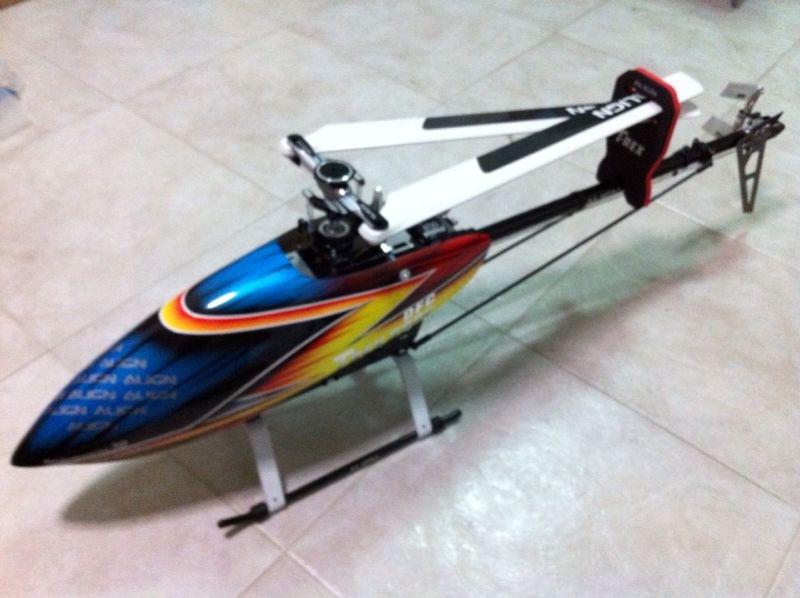

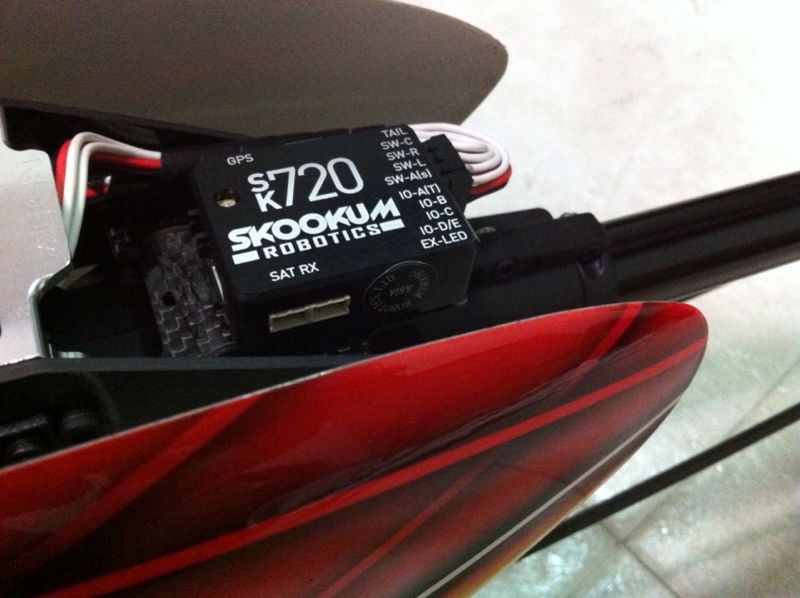

The 1st SK-720 BE owner in SG mounted it on his new Trex 550 DFC. Which will be used for 3D training.

[Zenmtech]

SK-540 Clear

Hi,

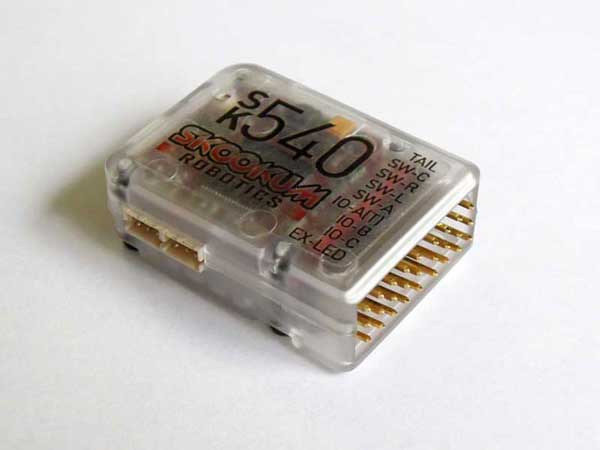

The Skookum SK-540 Clear version FBL is now available at Zenm Tech. This is the plastic version of the standard metal case SK-540. It has all the functions of the SK-540 except the governor and bank switching features. You can upgrade to full SK-540 features through Skookum's website. The SK-540 Clear is 4g lighter and 20% cheaper as compared to metal SK-540.

http://rc.zenmtech.com/electronics/flybarless/fbl-skookum-sk540-flybarless-system-clear.html

[Zenmtech]

SK-720 S-Buss Issue

Hi,

The S-Bus issue on SK-720 has been resolved, pending further tests before release of new firmware.

[Zenmtech]

New Software/Firmware (Rev 4) For SK720/SK540

Hi,

The new SK software/firmware has been released.

http://www.skookumrobotics.com/updates/

IMPORTANT NOTES FOR THIS RELEASE:

* There is a new setting on the “Drive System” tab, “Heli Size”. You MUST set this to get good performance!
* If you have an SK-GPS unit, please also update its firmware.
* Owners of an SK-540 purchased before 2013 should connect a BEC or battery during the firmware update.
* If you lose your setup file for any reason, a backup copy can be found in the install directory at “c:\program files\skookum robotics\”


New & Updated for this release:

* Added UDI (JR Xbus support) receiver mode
* Support for the 7008 Futaba receiver’s version of sbus1 protocol
* Support for Sbus2 (needs a 2-3k resistor between signal and ground to be reliable!)
* Support for Graupner receiver protocol
* DMSS receiver mode improved

* Better cyclic and tail handling for sport/3D flying
* Expanded Multicopter support, better handling
* Aux channels mapping changed to allow 4 control/gain channels
* Governor gain option, governor disabled with < 2% gain.
* Lower servo current draw
* Higher max temperature limit
* "Pitch Boost" option
* Smoother cyclic bank switching
* Allows you to set faster servo speeds
* Option to support mechanically-linear servos
* Option for 540hz tail servos
* GUI shows last flight's max sustained RPM (check View menu)
* GUI shows all gain channel readouts (check view menu)
* No need to click "send setup" (check Preferences to
* Option to reduce throttle to warn pilot if BEC/battery V drops

* SK720BE will tolerate longer periods of high vibration
* More stable self level
* Fixed issue with SK720BE's throttle output that affected Align ESCs.

* GPS position and Altitude hold is more precise and stable
* GPS position slew has better handling
* GPS rescue is faster acting and smoother
* Lower "floor" altitude is allowed (5m now)
* Allows for two GPS control switches, so up to 4 flight modes
* Each GPS switch has its own "home" position, which can be re-set in flight
* Added GPS modes: Grid, Radius, and Point
* Improved return-home behavior
* Extended range for return-home mode
* Option to return home on RX signal loss (multicopter only for now)
* GPS firmware update reduces spurious error messages

* Pro Data viewer can now view SK540 logs
* Governor output data added to data viewer
* Improved Google Earth support in Pro Data Viewer (GPS only, export KML file)

What didn’t make it into this release, but coming soon:
* SK-LCD terminal update
* Improved compatibility with Castle Creation ESC bail-out mode
* Bluetooth software for Android
