Valeur Hobby

[mack]

Thunder Power TP480 and TP730 Lipoly Packs

Brief Specs

480 mAh, 2 cells (7.4V), JST connector
Rating: 15C (7.2A) continuous, 22C (10.5A) burst
Dimension: 34mm x 50mm x 7mm
Weight: 23 grams

480 mAh, 3 cells (11.1V), JST connector
Rating: 15C (7.2A) continuous, 22C (10.5A) burst
Dimension: 34mm x 50mm x 10mm
Weight: 34 grams

730 mAh, 2 cells (7.4V), 18G wire
Rating: 13C (9.5A) continuous, 20C(15A) burst
Dimension: 34mm x 50mm x 9.5mm
Weight: 34gm

730 mAh, 3 cells (11.1V), 18G wire
Rating: 13C (9.5A) continuous, 20C (15A) burst
Dimension: 34mm x 50mm x 14mm
Weight: 49gm

[mack]

Thunder Power TP1320 and TP2100 packs

Brief Specs

TP1320-2S
1320 mAh, 2 cells (7.4V), 16G wire, 4-pin balancer connector
Rating: 13C (17A) continuous, 20C (27A) burst
Dimension: 34mm x 65mm x 13mm
Weight: 58gm

TP1320-3S
1320 mAh, 3 cells (11.1V), 16G wire, 4-pin balancer connector
Rating: 13C (17A) continuous, 20C (27A) burst
Dimension: 34mm x 65mm x 19mm
Weight: 85gm

TP2100-3S
2100 mAh, 3 cells (11.1V), 16G wire, 4-pin balancer connector
Rating: 15C (31.5A) continuous, 20C (42A) burst
Dimension: 34mm x 100mm x 20mm
Weight: 142gm, for Trex

[mack]

3rd Reserved for other capacity cells

[mack]

4th Reserved for other capacity cells

[mack]

Apache Smart Chargers & Power Adaptor

Here are some Apache Smart Chargers.

1/ Apache 2030 Smart Charger, in stock
2/ Apache 2500 Smart Charger, in stock
3/ 4A Power Adaptor, in stock

The stock status of the above Apache chargers and power adaptor would be updated regularly.

Please see the brief specs of the above Apache chargers and power adaptor as shown below.

[mack]

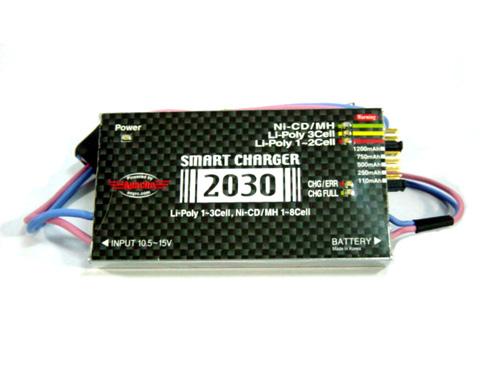

Apache 2030 Smart Charger

SMART CHARGER 2030 MANUAL
Li-Poly, Ni-CD, Ni-MH

SMART CHARGER 2030 is for Lipoly, Ni-CD and Ni-MH.
Please read this manual before use.

1. Specifications & Instructions
• Chargeable Battery
o Li-Poly Battery: 1 ~ 3 Cell
o Ni-CD Battery: 1 ~ 8 Cell
o Ni-MH Battery: 1 ~ 8 Cell

• Charging port Selection
o Li-Poly Battery: 1 ~ 2 Cell and 3 Cell
o Ni-CD Battery: 1 ~ 8 Cell
o Ni-MH Battery: 1 ~ 8 Cell

• Working Voltage and Current
o Input Voltage: 12V (10.5 ~ 15V)
o Output Voltage: 4.2V +- 1%
o Selectable Output voltage: 3.7V (1 Cell), 7.4V (2 Cell), 11.1V (3 Cell) – Li-Poly Battery only)
o Selectable Output Current: 110mAh, 250mAh, 500mAh, 750mAh, 1200mAh
• Input and Output Protection
o Reverse Polarity & Short Circuit Protection System

• Trickle charge
o When you have completed charging, it will be switched to “Trickle Mode”.

• Dimension (mm)
o 90mm x 48mm x 11mm

2. LED Display
• Power LED (Left side)
o Green LED On : Power On (12V)
o Reverse Polarity of input voltage: Red LED “Flashes”

• Cell Selection LED (Right Side)
o Li-poly 1 – 2 Cells: Red LED “On”.
o Li-poly 3 Cells: Yellow LED “On”.
o Ni-CAD, NiMH: Green LED “On”.

• Charging Mode Display (Middle LED)
o Charging Mode: Red LED “on”.
o Reverse Polarity of output source: Red LED “Flashes”.
o Short Circuit of output tab: Red LED “Flashes”.
(The result may destroy battery only)
o Incorrect Cell Count Set: Red LED “Off” (over 4 cells)
o Incorrect Cell Voltage Set: Red LED “Off”.
o 80% Completed charging: Red LED & Green LED “On”
(Only for charging Li-poly Battery charging)
o Completed Charging: Green LED “On”

3. Cautions
• Please select “battery type” carefully
• Never exceed 1C when you are charging Lithium Polymer Battery Cell / Packs

[mack]

Apache 2500 Smart Charger

Here is a picture of the Apache 2500 Smart Charger.

[mack]

TP425 Thunder Power Lithium Polymer Charger

TP425 Thunder Power Charger

- Lithium Polymer charger for 1 to 4 cell: 300, 500, 800, 1300, 2000 and 2500 mAh settings

- Digital technology, auto cell detect, push button controlReserved for Chargers

Stock status: in stock

[mack]

2nd Reserved for Chargers

[mack]

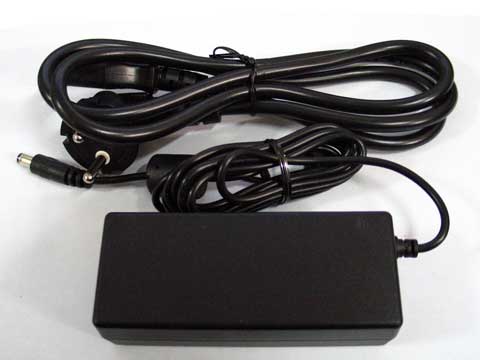

4A Power Adaptor

This is a power adaptor suitable and recommended for Apache Smart Chargers. Input voltage is 110V / 220V. Output voltage is 12V. And the maximum current output is 4A.

[mack]

Reserved space for power adaptor.

[mack]

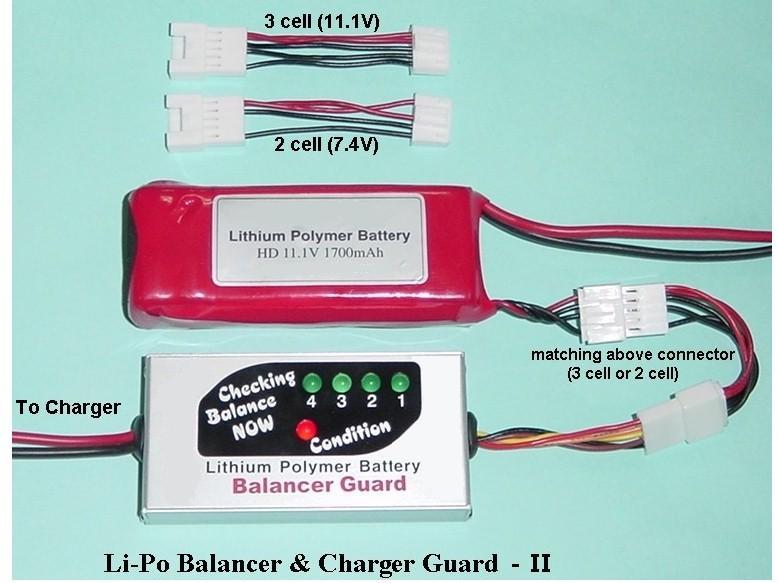

New Balancer Guard

Here is a new Balancer Guard that could balance 2S, 3S and 4S lithium polymer battery packs. It was tested on E-TEC 700HP 2S1P, E-TEC 1700HPT 3S1P and E-TEC 1700HPT 4S1P lithium polymer battery packs.

The testing was successfully. The cells of each pack were discharged to ensure that they were not balanced. Each pack was connected with the male connector to be used for balancing the cells. Then, we connected the new Balancer Guard between the Apache 2500 smart charger and a pack to balance the cells. Each pack was balanced after using this new Balancer Guard. So, we are bringing in this new Balancer Guard to care for our lithium polymer battery packs.

Stock status: out of stock
1/ Male connectors for 2S lipoly pack
2/ Male connectors for 3S lipoly pack
3/ New Balancer Guard – wire with 4S interface, c/w 2S and 3S interfaces

[mack]

TP205 Thunder Power Cell Balancer

TP 205 Thunder Power Cell Balancer

- 2 to 5 cell Smart balancer
- Auto balance (active if more than 0.005V imbalance)
- Over voltage safety alerts (also shut-off TP charger if detected any 4.3V cell during charging)

[mack]

Brushless Motors

Get your AXI Motors here. It is cheaper. We have: -

1/ AXI 2808/20, in stock, last piece
2/ AXI 2212/34 silver line, last piece
3/ You could order other AXI motors here

We provide after sales service like sending your AXI motors for repair.

The stock status would be updated regularly.

[mack]

COOL Running Controllers

COOL Running Electronic Speed Controllers (ESC)

About COOL Running

COOL Running speed controllers are the result of meticulous design engineering and craftsmanship. They are built using advanced production techniques and equipment located in the Silicon Valley in California, USA. A team of highly skilled people manufacture and test each unit.

Take a close look at COOL Running’s hardware and you will see that COOL Running products are the result of top-notch engineering and manufacturing.
